Summary Table (1st Order)

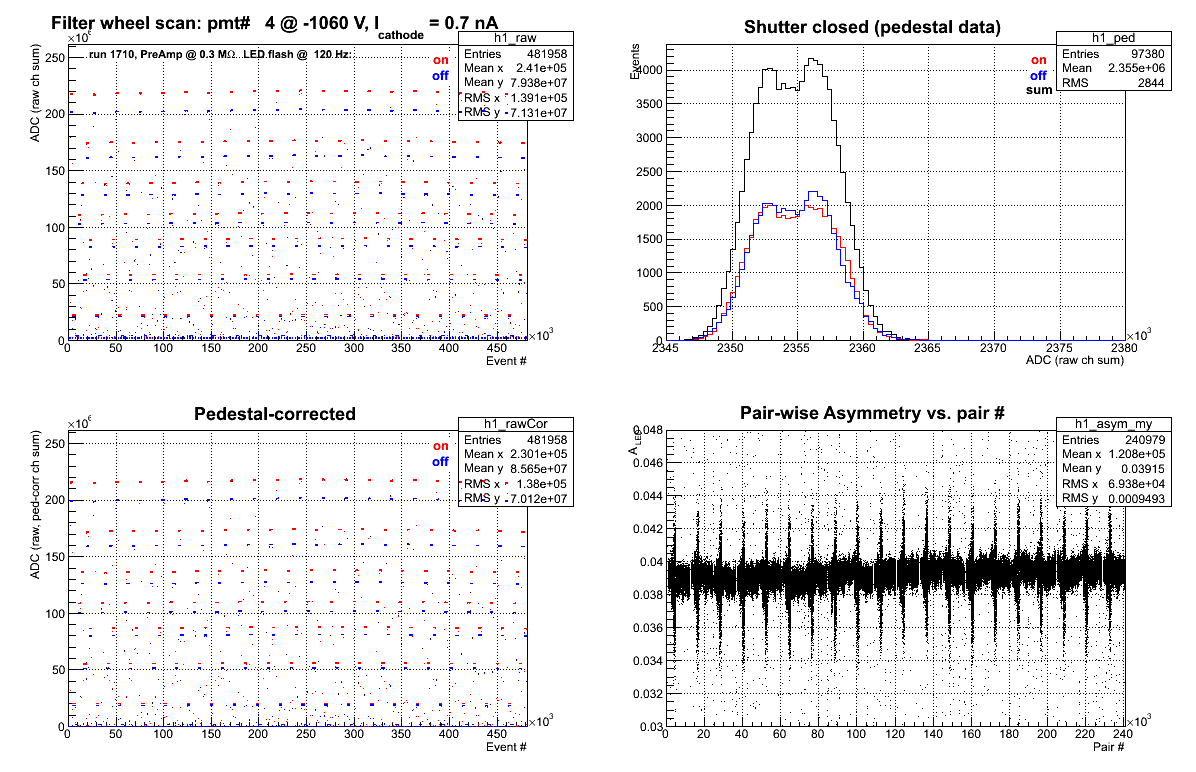

Plots: Raw, Pedestal, Corrected and Asymmetry Distributions(0.7 nA LL)

Choose HV and preAmp Settings from here

HV: -1060,
preAmp: 0.3(KDPA)		 HV: -1035,
preAmp: 0.3(KDPA)
HV: -1000,
preAmp: 0.3(KDPA)		 HV: -970,
preAmp: 0.3(KDPA)

HV: -950,
preAmp: 0.5(LUMI)		 HV: -920,
preAmp: 0.5(LUMI)
HV: -890,
preAmp: 0.5(LUMI)		 HV: -850,
preAmp: 0.5(LUMI)

HV: -825,
preAmp: 1.0(LUMI)		 HV: -800,
preAmp: 1.0(LUMI)
HV: -780,
preAmp: 1.0(LUMI)		 HV: -750,
preAmp: 1.0(LUMI)

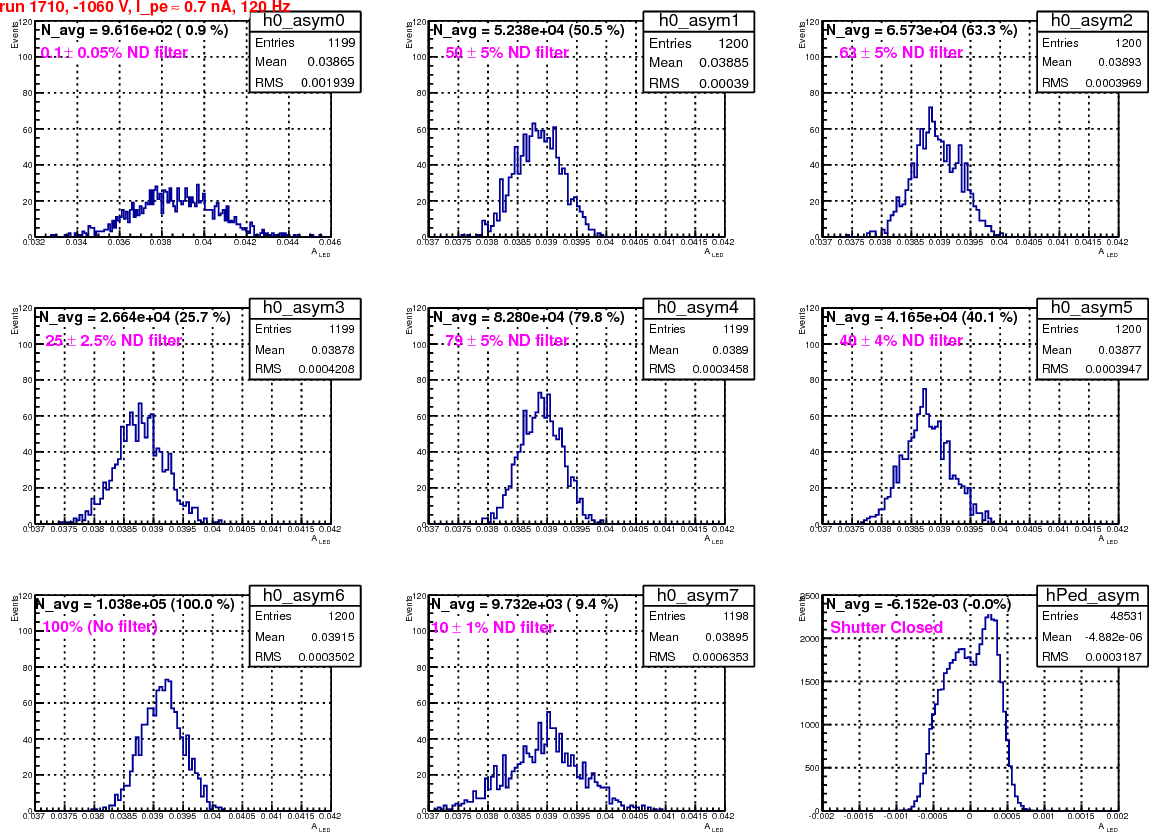

Plots: Filterwise Asymmetry Distributions for 1st filter cycle(0.7 nA LL)

Choose HV And PreAmp Settings From Here:

HV: -1060,
preAmp: 0.3(KDPA)		 HV: -1035,
preAmp: 0.3(KDPA)
HV: -1000,
preAmp: 0.3(KDPA)		 HV: -970,
preAmp: 0.3(KDPA)

HV: -950,
preAmp: 0.5(LUMI)		 HV: -920,
preAmp: 0.5(LUMI)
HV: -890,
preAmp: 0.5(LUMI)		 HV: -850,
preAmp: 0.5(LUMI)

HV: -825,
preAmp: 1.0(LUMI)		 HV: -800,
preAmp: 1.0(LUMI)
HV: -780,
preAmp: 1.0(LUMI)		 HV: -750,
preAmp: 1.0(LUMI)

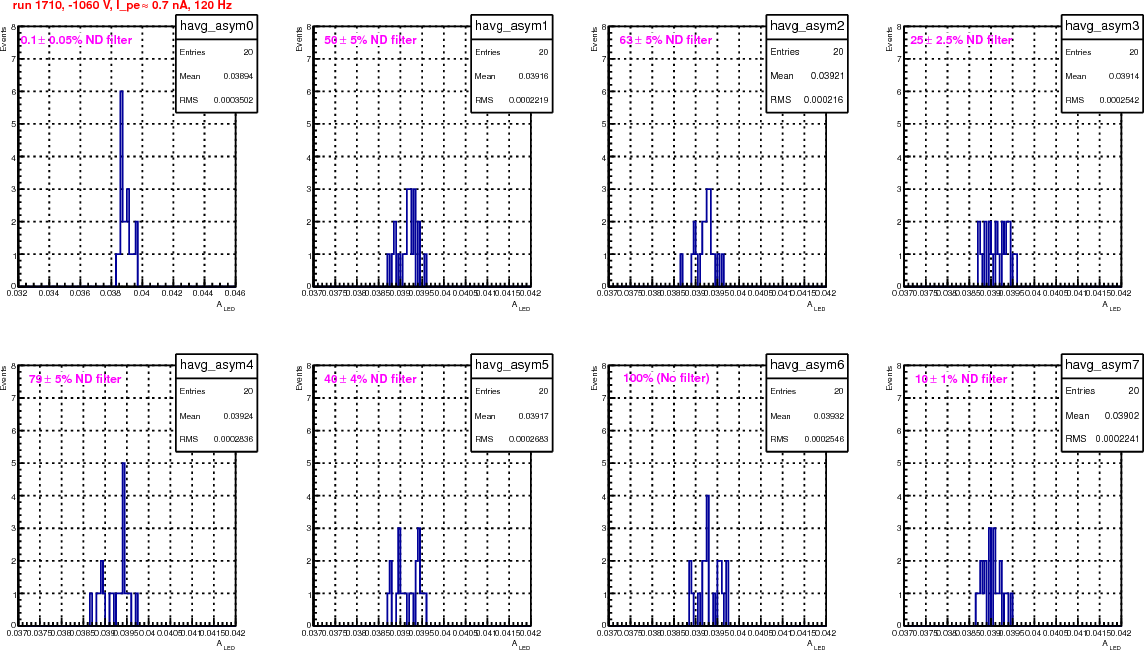

Plots: Filterwise Average Asymmetry Distributions for 20 filter cycle(0.7 nA LL)

Choose HV And PreAmp Settings From Here:

HV: -1060,
preAmp: 0.3(KDPA)		 HV: -1035,
preAmp: 0.3(KDPA)
HV: -1000,
preAmp: 0.3(KDPA)		 HV: -970,
preAmp: 0.3(KDPA)

HV: -950,
preAmp: 0.5(LUMI)		 HV: -920,
preAmp: 0.5(LUMI)
HV: -890,
preAmp: 0.5(LUMI)		 HV: -850,
preAmp: 0.5(LUMI)

HV: -825,
preAmp: 1.0(LUMI)		 HV: -800,
preAmp: 1.0(LUMI)
HV: -780,
preAmp: 1.0(LUMI)		 HV: -750,
preAmp: 1.0(LUMI)

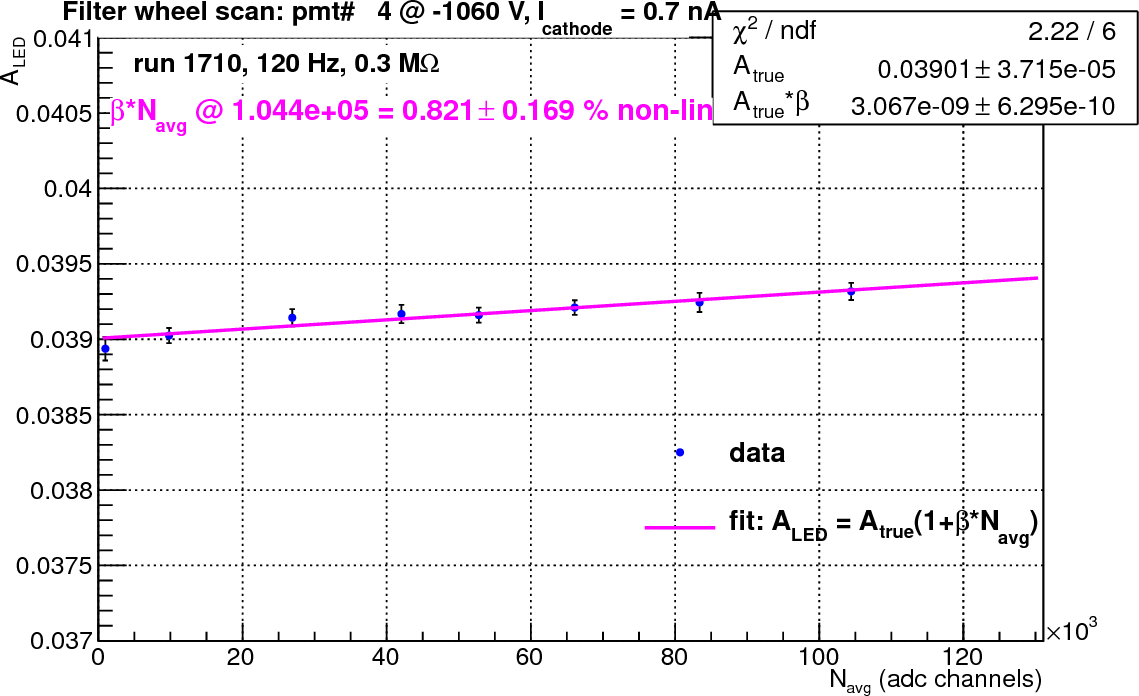

Plots: ALED vs Navg plots and non-linearity calculation(0.7 nA LL)

Choose HV And PreAmp Settings From Here:

HV: -1060,
preAmp: 0.3(KDPA)		 HV: -1035,
preAmp: 0.3(KDPA)
HV: -1000,
preAmp: 0.3(KDPA)		 HV: -970,
preAmp: 0.3(KDPA)

HV: -950,
preAmp: 0.5(LUMI)		 HV: -920,
preAmp: 0.5(LUMI)
HV: -890,
preAmp: 0.5(LUMI)		 HV: -850,
preAmp: 0.5(LUMI)

HV: -825,
preAmp: 1.0(LUMI)		 HV: -800,
preAmp: 1.0(LUMI)
HV: -780,
preAmp: 1.0(LUMI)		 HV: -750,
preAmp: 1.0(LUMI)

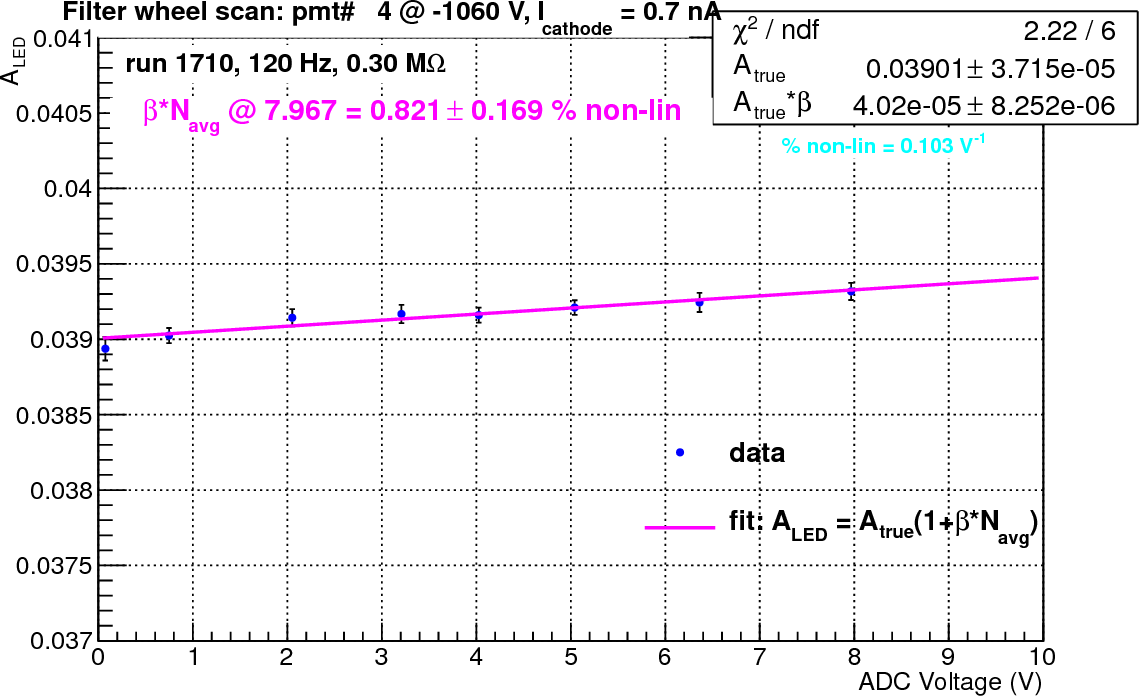

Plots: ALED vs VADC plots and non-linearity calculation(0.7 nA LL)

Choose HV And PreAmp Settings From Here:

HV: -1060,
preAmp: 0.3(KDPA)		 HV: -1035,
preAmp: 0.3(KDPA)
HV: -1000,
preAmp: 0.3(KDPA)		 HV: -970,
preAmp: 0.3(KDPA)

HV: -950,
preAmp: 0.5(LUMI)		 HV: -920,
preAmp: 0.5(LUMI)
HV: -890,
preAmp: 0.5(LUMI)		 HV: -850,
preAmp: 0.5(LUMI)

HV: -825,
preAmp: 1.0(LUMI)		 HV: -800,
preAmp: 1.0(LUMI)
HV: -780,
preAmp: 1.0(LUMI)		 HV: -750,
preAmp: 1.0(LUMI)

Plots: Different Distributions(0.7 nA LL)

Choose A Distribution From Here:

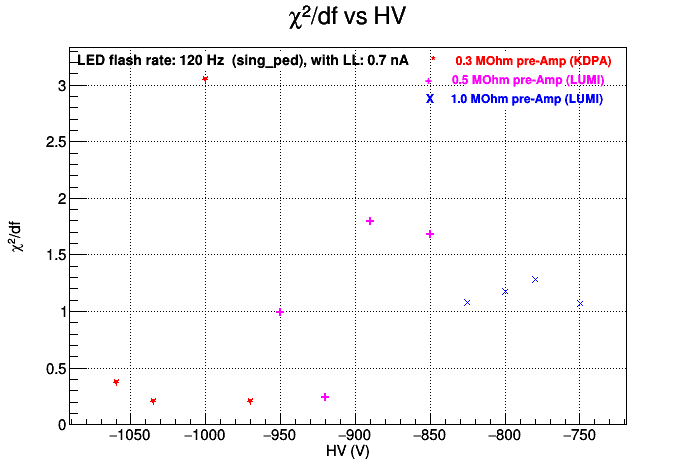

χ2 vs HV χ2 vs preAmp
non-lin/V vs ADC-Sig non-lin/V vs HV
non-lin/V vs preAmp non-lin vs ADC-Sig
non-lin vs HV non-lin vs Navg
non-lin vs RelativeWidth RelativeWidth vs HV
RelativeWidth vs preAmp
