Summary Table

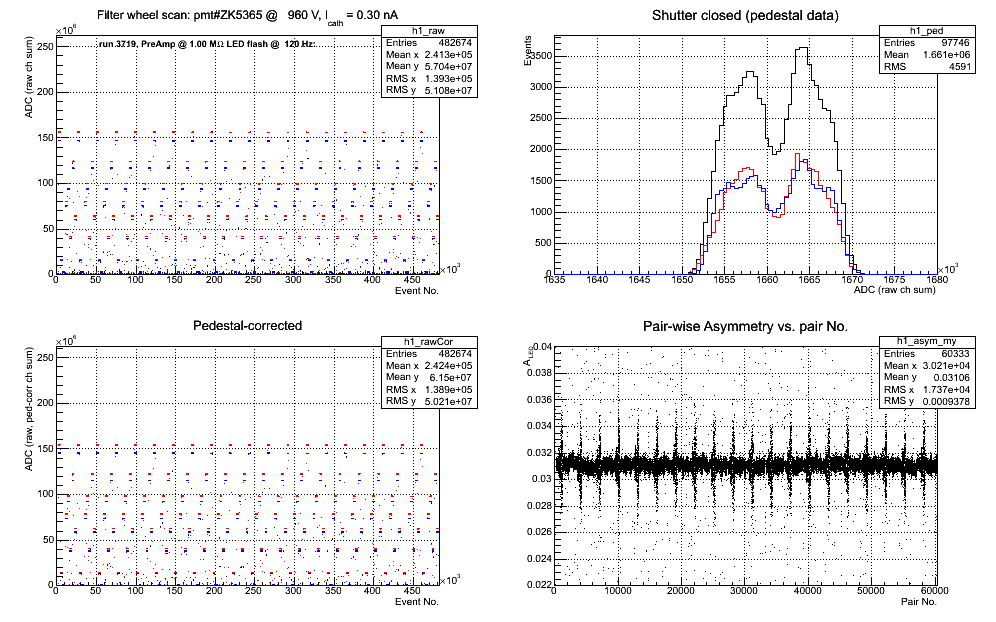

Plots: Raw, Pedestal, Corrected and Asymmetry Distributions(0.3 nA LL)

Choose HV and preAmp Settings from here HV: -960; PreAmp: 1.0(MAIN) HV: -900; PreAmp: 1.0(MAIN) HV: -840; PreAmp: 2.0(MAIN) HV: -800; PreAmp: 2.0(MAIN) HV: -745; PreAmp: 4.0(MAIN) HV: -705; PreAmp: 4.0(MAIN) HV: -615; PreAmp: 10.0(SNS) HV: -590; PreAmp: 10.0(SNS)

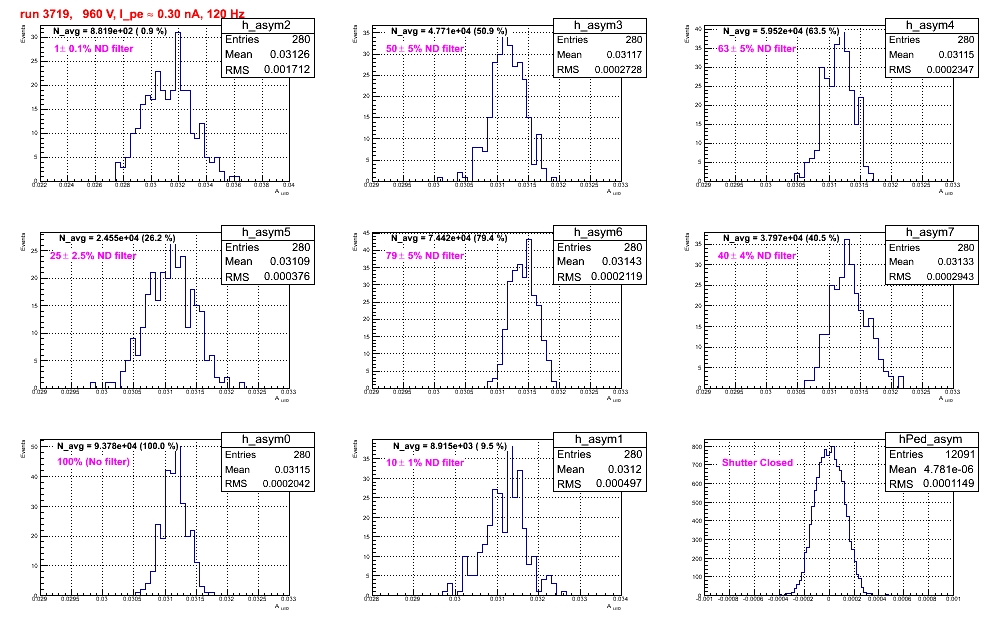

Plots: Filterwise Asymmetry Distributions for 1^st filter cycle(0.3 nA LL)

Choose HV And PreAmp Settings From Here: HV: -960; PreAmp: 1.0(MAIN) HV: -900; PreAmp: 1.0(MAIN) HV: -840; PreAmp: 2.0(MAIN) HV: -800; PreAmp: 2.0(MAIN) HV: -745; PreAmp: 4.0(MAIN) HV: -705; PreAmp: 4.0(MAIN) HV: -615; PreAmp: 10.0(SNS) HV: -590; PreAmp: 10.0(SNS)

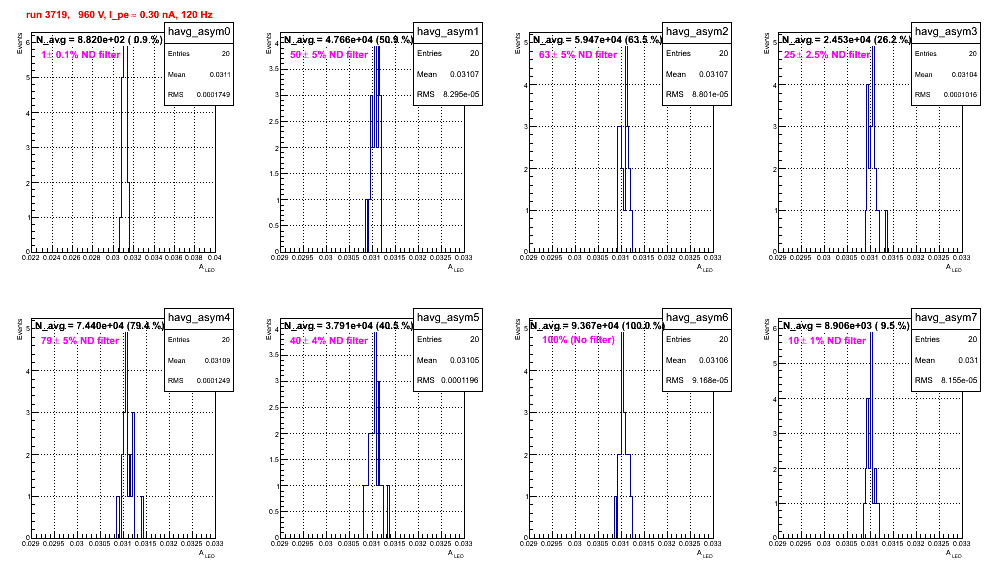

Plots: Filterwise Average Asymmetry Distributions for 20 filter cycle(0.3 nA LL)

Choose HV And PreAmp Settings From Here: HV: -960; PreAmp: 1.0(MAIN) HV: -900; PreAmp: 1.0(MAIN) HV: -840; PreAmp: 2.0(MAIN) HV: -800; PreAmp: 2.0(MAIN) HV: -745; PreAmp: 4.0(MAIN) HV: -705; PreAmp: 4.0(MAIN) HV: -615; PreAmp: 10.0(SNS) HV: -590; PreAmp: 10.0(SNS)

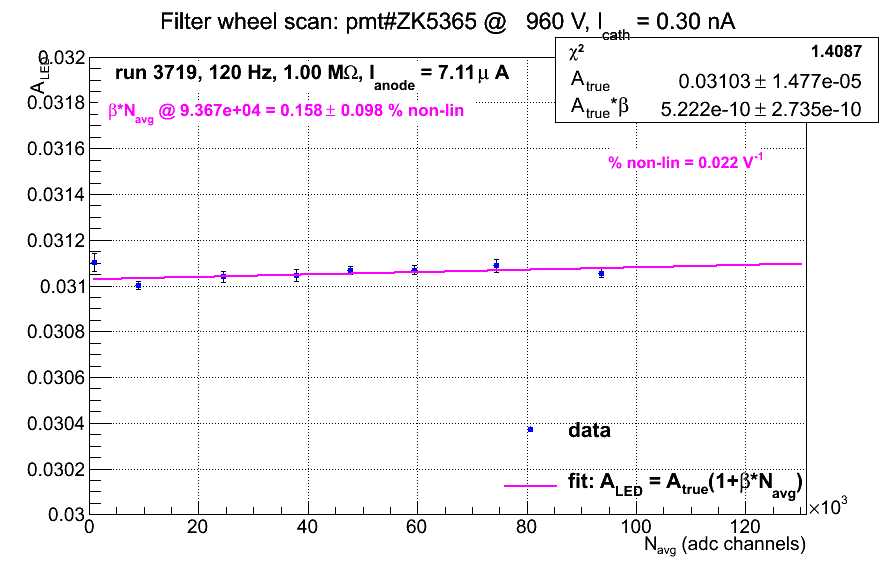

Plots: A_LED vs N_avg plots and non-linearity calculation(0.3 nA LL)

Choose HV And PreAmp Settings From Here: HV: -960; PreAmp: 1.0(MAIN) HV: -900; PreAmp: 1.0(MAIN) HV: -840; PreAmp: 2.0(MAIN) HV: -800; PreAmp: 2.0(MAIN) HV: -745; PreAmp: 4.0(MAIN) HV: -705; PreAmp: 4.0(MAIN) HV: -615; PreAmp: 10.0(SNS) HV: -590; PreAmp: 10.0(SNS)

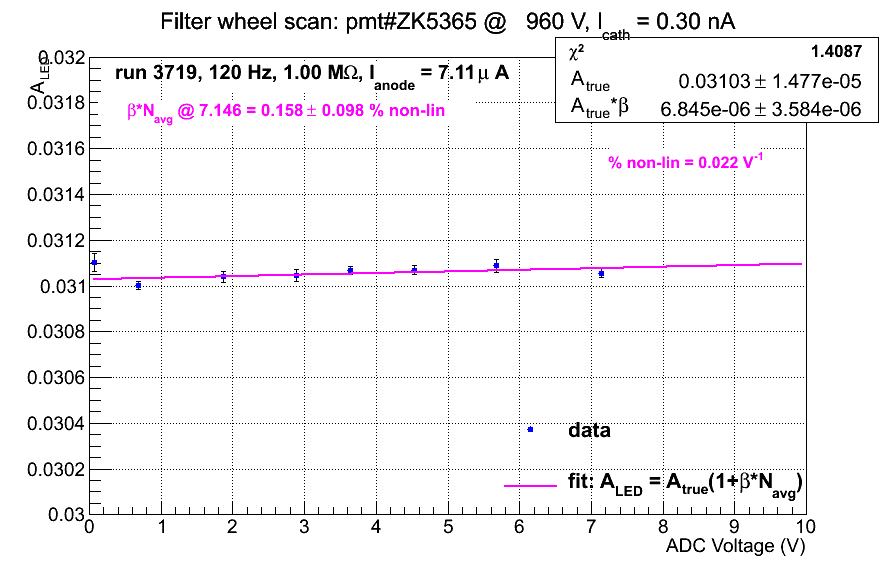

Plots: A_LED vs V_ADC plots and non-linearity calculation(0.3 nA LL)

Choose HV And PreAmp Settings From Here: HV: -960; PreAmp: 1.0(MAIN) HV: -900; PreAmp: 1.0(MAIN) HV: -840; PreAmp: 2.0(MAIN) HV: -800; PreAmp: 2.0(MAIN) HV: -745; PreAmp: 4.0(MAIN) HV: -705; PreAmp: 4.0(MAIN) HV: -615; PreAmp: 10.0(SNS) HV: -590; PreAmp: 10.0(SNS)

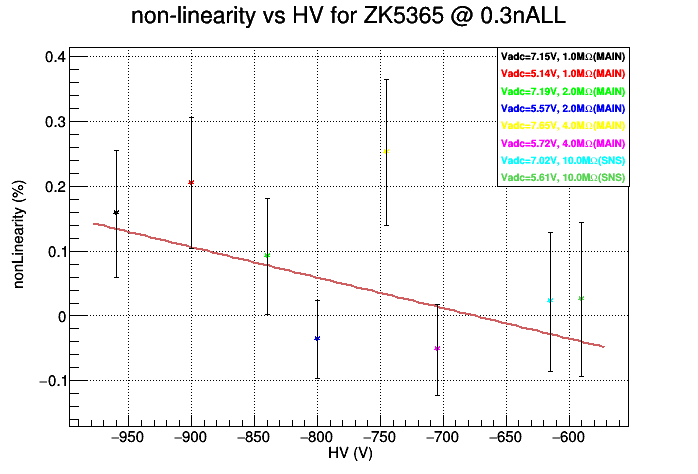

Plots: Different Distributions for the 1^st Order non-Linearity(0.3 nA LL)

Choose A Distribution From Here: nonLin vs HV nonLin vs Iout Iout vs HV
